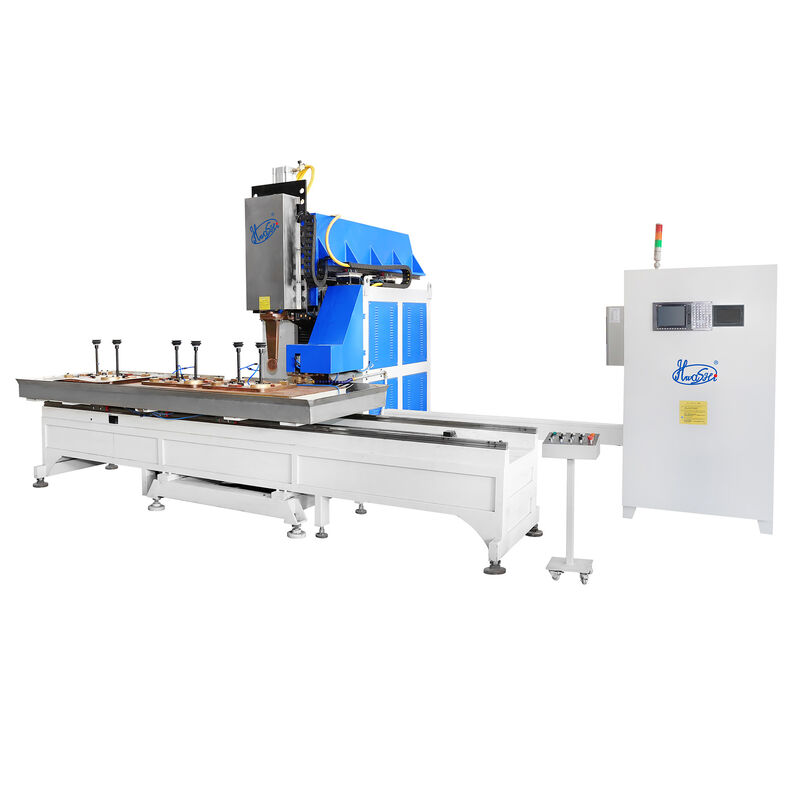

Hwashi Inox SS304 CNC 3 Axis Control Sink Seam Welding Machine with 160kVA Rated Capacity and CE/CCC/ISO Certification

Tempat asal:

CE/CCC/ISO

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Hubungi Kami

Minta Kutipan

Rincian produk

Aplikasi:

Pengelasan untuk wastafel dapur

Kapasitas terukur:

160KVA

Waktu pembentukan:

1 menit

Berat kotor tunggal:

65.000kg

Daya masukan:

Fase tunggal 380V10% 50Hz

Penggunaan:

Pengelasan Wastafel

Konsumsi air pendingin:

1000l/jam

Standar:

CE/CCC/ISO

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

dapat dinegosiasikan

Kemasan rincian

paket kayu laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 Set per Bulan

Produk terkait

Video

160kVA CNC 3 Axis Control Sink Seam Welding Machine dan CE/CCC/ISO Certified Stainless Steel CNC Sink Polishing Machine

Dapatkan Harga Terbaik

Video

Mesin Pengelasan Sink Baja Rinsing dengan Diameter Roda Penggiling 50mm, Arus Pengelasan 1000A, dan Operasi Semi Otomatis untuk Produksi Sink Dapur

Dapatkan Harga Terbaik

Video

500kg Stainless Steel Sink Welding Machine dengan 80KVA Power and Water Cooling untuk Industrial Kitchen Sink Welding

Dapatkan Harga Terbaik

Video

Mesin Las Wastafel Stainless Steel Menyediakan Solusi Pengelasan Otomatis untuk Meningkatkan Kekuatan Peralatan Dapur

Dapatkan Harga Terbaik

Hubungi Kami

+8613380655800

marketing@hwashi.com

Hubungi Sekarang

Deskripsi Produk

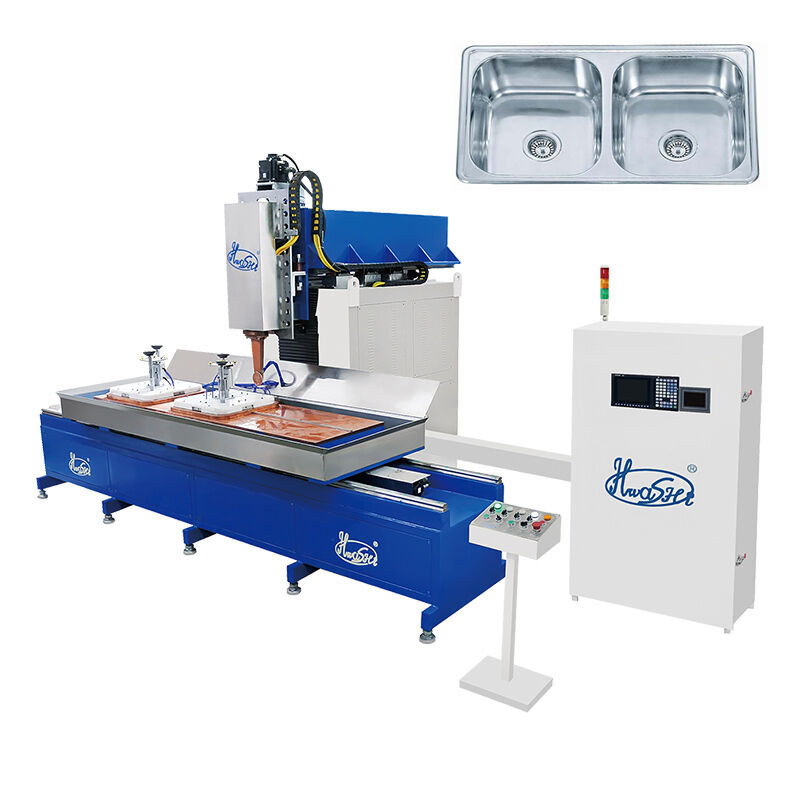

Hwashi Inox SS304 Kitchen Double Sink Seam Welding Machine and Stainless Steel CNC Sink Polishing Machine Grinder

Product Overview

The CNC 3 Axis Control Stainless Steel Kitchen Sink Seam Welding Machine utilizes roller electrodes instead of cylindrical spot welding electrodes. The welded workpiece moves between the rollers to produce a sealed weld with overlapping molten cores, effectively joining the workpiece together.

This system employs a medium frequency inverter welding power source and large flat platform locating method. Servo motors drive the X-axis (locating mould) and Y-axis (welding electrode) according to preset PLC procedures. The welding product is positioned inside the mould and moves horizontally along the X direction, while the welding electrode moves vertically along the Y direction. The welding electrode can rotate 360° under servo motor control, making it suitable for welding products at different angles.

Suitable for welding sinks within the range of 1600x700x300mm (customizable).

CNC Sink Edges Grinding and Polishing Machine

This specially designed machine grinds and polishes seams after welding. Typically purchased together with the welding machine to complete kitchen sink production, this CNC sink grinding machine utilizes abrasive belt polishing principles.

The abrasive belt, driven by an electric motor, polishes the edges of welded sinks through two processes: first using a coarse abrasive belt to grind redundant cutting edges and projection welding spots, then using a fine abrasive belt for polishing treatment. These two processes meet sink grinding and polishing requirements.

Technical Specifications

CNC Sink Seam Welding Machine

Model	WL-AMF-160K
Input Power (V/φ)	380V 3φ
Rated Power (KVA)	160/250KVA (as per material thickness)
Applicable Material	Stainless Steel 304/201
Material Thickness	0.8~1.5mm (customized)
Effective Welding Length	1600-3000mm (customized)
Effective Welding Width	600-800mm (customized)
Sink Bowl Shape	Square/Rectangular/Round
Welding Efficiency	about 40-60sec/bowl (depend on the size of bowl)

CNC Sink Edge Grinding and Polishing Machine

Max. Moving Speed	500mm/sec
Belt Rotation Speed	1200R/min
Min. Radius	R40
Rated Air Pressure	0.6MPa
Grinding Efficiency	about 60-80sec/bowl (depend on the size of bowl)
