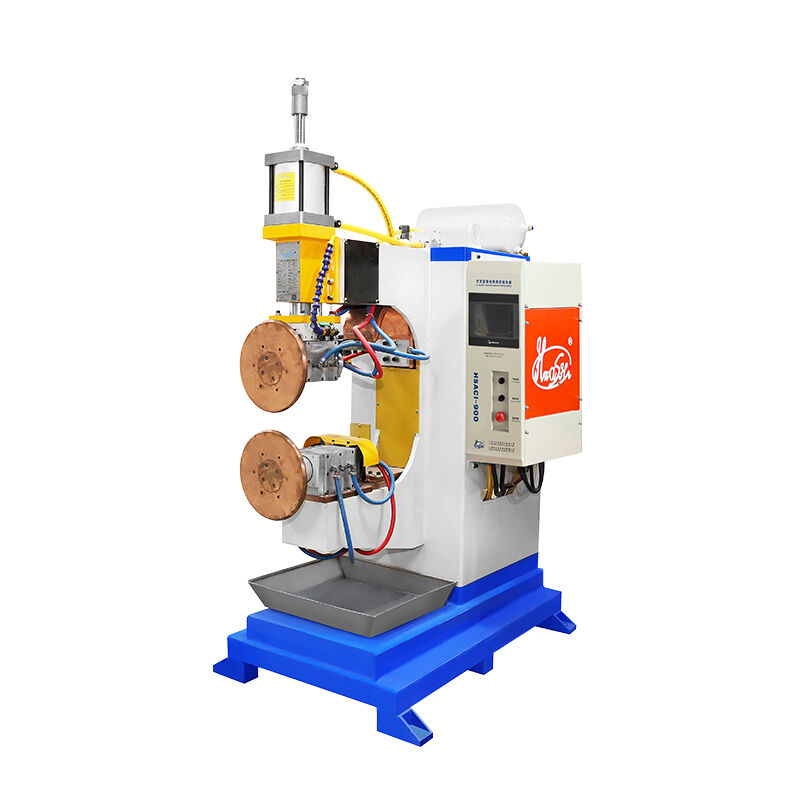

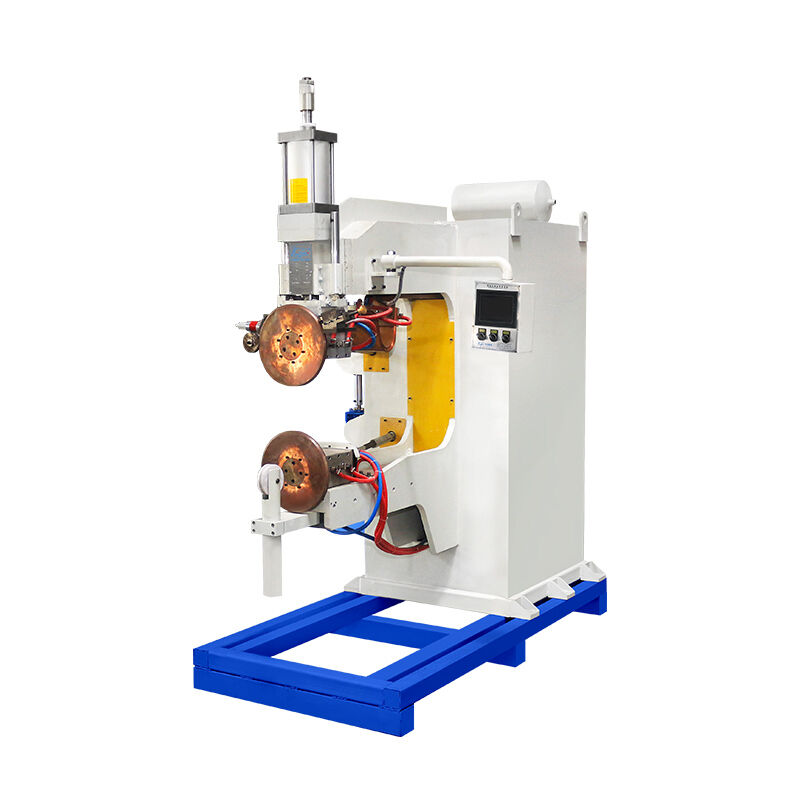

Name: CNC X Y Axis Seam Welding Machine with PLC Control for Stainless Steel Flange
Brand: Guangdong Hwashi Technology inc.
SKU: WL-FS
Price: 225,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Las Jahitan >

CNC X Y Axis Seam Welding Machine with PLC Control for Stainless Steel Flange

Tempat asal:

Cina

Nama merek:

Hwashi

Sertifikasi:

CE,CCC,ISO

Nomor model:

WL-FS

Hubungi Kami

Minta Kutipan

Rincian produk

Nama Produk:

Hwashi CNC X, Y Axis Square Tank Cover Seam Welding Machine Welding Untuk Flange Baja Rustless

Kondisi:

Baru

Lebar Sabuk Abrasif:

50mm

Kecepatan las:

0,5-5m/mnt

Bahan pengelasan:

Baja Karbon/Baja Tahan Karat

berat:

300KG

Sistem kendali:

PLC

Lebar pengelasan:

5-20mm

Ketebalan Pengelasan Minimum:

0,2 mm

voltase:

380V, fase 2, 50/60Hz

Jenis mesin:

Mesin Pengelasan Resistensi

Kehidupan pelayanan:

8-10 tahun

Modus pengelasan:

Kontinyu/Intermiten

Tarif Siklus Tugas:

20%

Syarat Pembayaran & Pengiriman

Kuantitas min Order

Harga

dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

T/T,L/C

Menyediakan kemampuan

50 Set per Bulan

Produk terkait

500 Kg Seam Welding Machine Menawarkan PLC Control Mode dan Semi Automatic Automation Level Sempurna untuk Pengelasan Konsisten

Dapatkan Harga Terbaik

Mesin Seam Semi-Otomatis Dengan Rentang Ketebalan Las 0,5 hingga 5 Mm Sempurna untuk Aplikasi Pengelasan Sambungan Industri

Dapatkan Harga Terbaik

Mesin Las Sambungan Mode Kontrol PLC Berat Mesin 500 Kg Disesuaikan Sesuai Kebutuhan Anda Ideal untuk Tugas Pengelasan Presisi

Dapatkan Harga Terbaik

Mesin Las Mode Las Berkelanjutan Menawarkan Rentang Arus Las 50-200A Dirancang untuk Operasi Pengelasan Sambungan

Dapatkan Harga Terbaik

Hubungi Kami

+8613380655800

marketing@hwashi.com

Hubungi Sekarang

Deskripsi Produk

CNC X Y Axis Seam Welding Machine with PLC Control System for Stainless Steel Flange

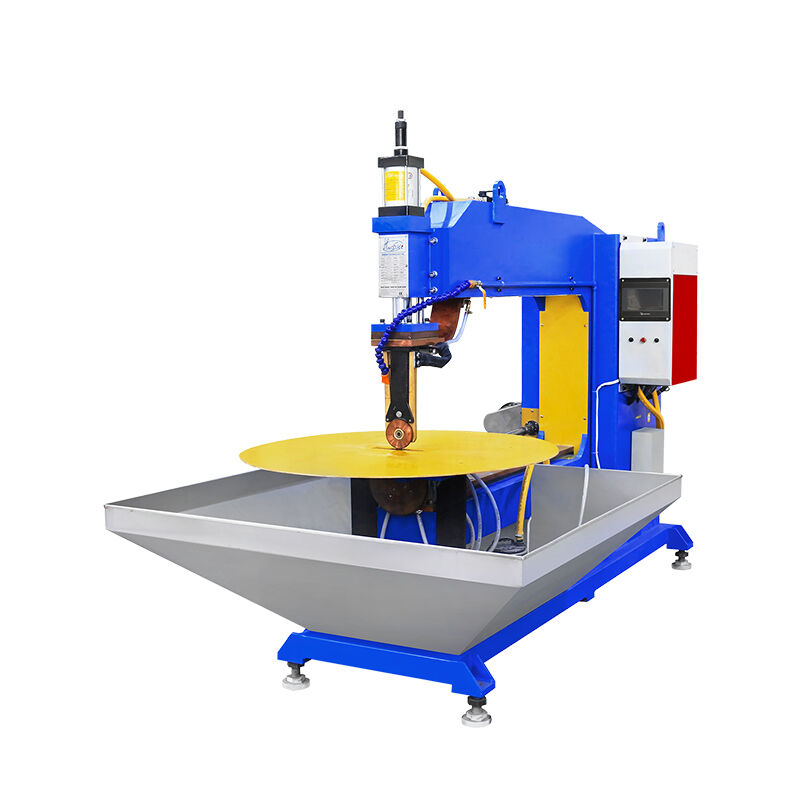

Hwashi CNC X,Y Axis Square Tank Cover Seam Welding Machine utilizes seam welding technology, replacing spot welding electrodes with circular welding wheels. The system employs a rotation table for workpieces and automated programming for precise welding operations.

Operation Principle

By inputting coordinate data, welding current, and other parameters, the machine automatically completes welding along preset tracks. Operators simply position the workpiece and remove it after welding completion. The system uses AC welding power source with a large flat platform lower electrode and servo motor-driven X and Y axis movement under programmed control.

Horizontal X-axis movement: ≤500mm
Vertical Y-axis electrode movement: ≤300mm
Suitable for tanks within 500x300mm range
Welding material thickness: 0.5-1.5mm
Total welding thickness: 1-3mm

Control System & Structure

Intelligent Welding Control System: Intelligent Touch Screen Controller for parameter input and monitoring. Shape Structure and Welding Method: Custom machine shapes and molds designed according to product specifications with extended welding arms.

Welding Methodology

Utilizes standardized welding electrodes with options for custom electrode molds and welding methods based on specific product requirements.

Key Features

Flexibility: Customizable for different sizes and shapes of steel wire baskets
Strong Stability: High stability for long-term operation with reduced downtime
Reliability: High-quality materials and components for extended service life
Energy Efficiency: Energy-saving power systems and eco-friendly materials

Technical Specifications

Model	WL-FS-75K	WL-FS-100	WL-FS-125	WL-FS-160	WL-FS-200	WL-FS-250
Rated Capacity KVA	75	100	125	160	200	250
Voltage V	380*2	380*2	380*2	380*2	380*2	380*2
Duty Cycle Rate%	50	50	50	50	50	50
No Load Voltage V	1.08-7.02	1.12-7.38	1.26-8	1.3-8.5	2.2-9.0	1.3-9.7
Max. Welding Thickness mm	1.2+1.2	1.5+1.5	1.8+1.8	2+2	2.5+2.5	2.5+3
Upper Wheel Stroke mm	20-80	20-80	30-100	30-100	30-100	30-100
Welding Speed m/min	0.6-4	0.5-3.2	0.5-2.8	0.5-1.5	0.5-1.2	0.5-1.2
Max. Pressure KN	6.3	6.3	8.6	8.6	8.6	8.6
Compressed Air Mpa	0.5	0.5	0.6	0.6	0.6	0.6
Cooling Water Consumption L/h	820	960	1080	1080	1080	1080

Customization & Applications

We provide customized services with technical proposals developed based on your samples or drawings through direct engineering consultation.

Application Industries

Sheet, barrel body, box and sealed thin-wall container welding
Materials: Carbon steel, stainless steel, titanium, nickel and other materials
Automotive fuel tanks, motorcycle dampers
Temperature controller detectors, battery nickel straps
Oil heaters, power capacitors, sieve iron baskets
Water pump manufacturing, tin making, coopery industry

Quality Assurance

Manufactured with certified quality standards and comprehensive factory testing.
