Name: HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine
Brand: Guangdong Hwashi Technology inc.
SKU: WL-B-50K
Price: 157,805.00 USD
Availability: InStock

Rumah > Produk > Mesin Las Titik >

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

75KVA Power Spot Welding Machine

CE/CCC/ISO Certification Medium Frequency Inverter Spot Welder

Vertical Type MFDC Spot Welder

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Nomor model:

WL-B-50K

Hubungi Kami

Minta Kutipan

Rincian produk

Penggunaan:

Pengelasan Butt

Jaminan:

12 bulan

Kekuatan:

75KVA

Sertifikat:

CE/CCC/ISO

Kehidupan Pelayanan:

8-10 tahun

air pendingin:

30L/mnt

Warna:

biru, Sesuai permintaan pelanggan.

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 SET

Harga

dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 set per bulan

Produk terkait

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

Dapatkan Harga Terbaik

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

Dapatkan Harga Terbaik

Video

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine with 75KVA Power

Dapatkan Harga Terbaik

Mesin Las Tempel Tahanan Listrik Otomatis dengan Tegangan Masukan 380V dan Daya 25-75KW

Dapatkan Harga Terbaik

Hubungi Kami

+8613380655800

marketing@hwashi.com

Hubungi Sekarang

Deskripsi Produk

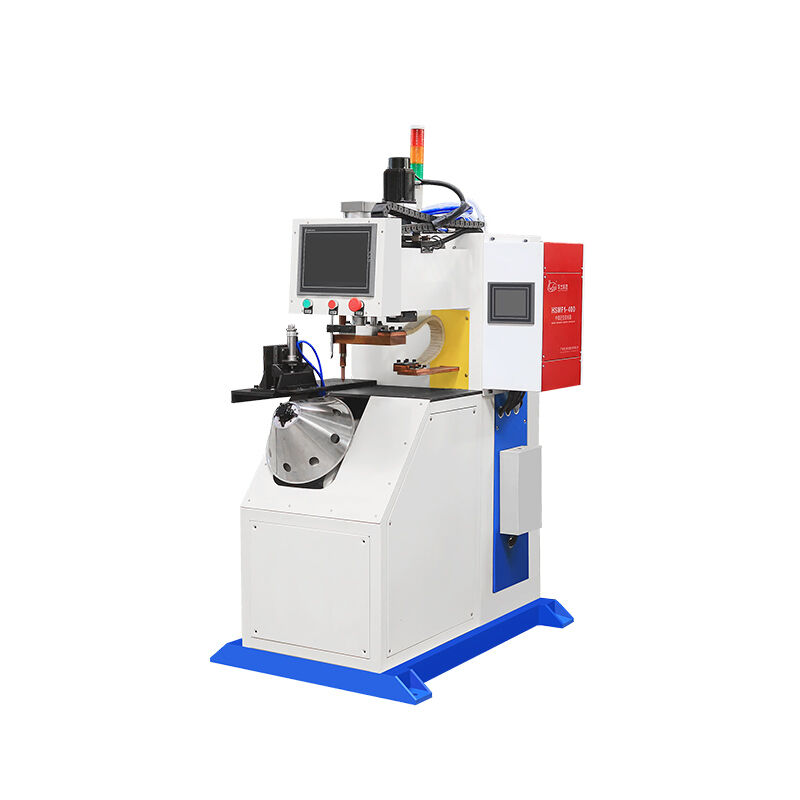

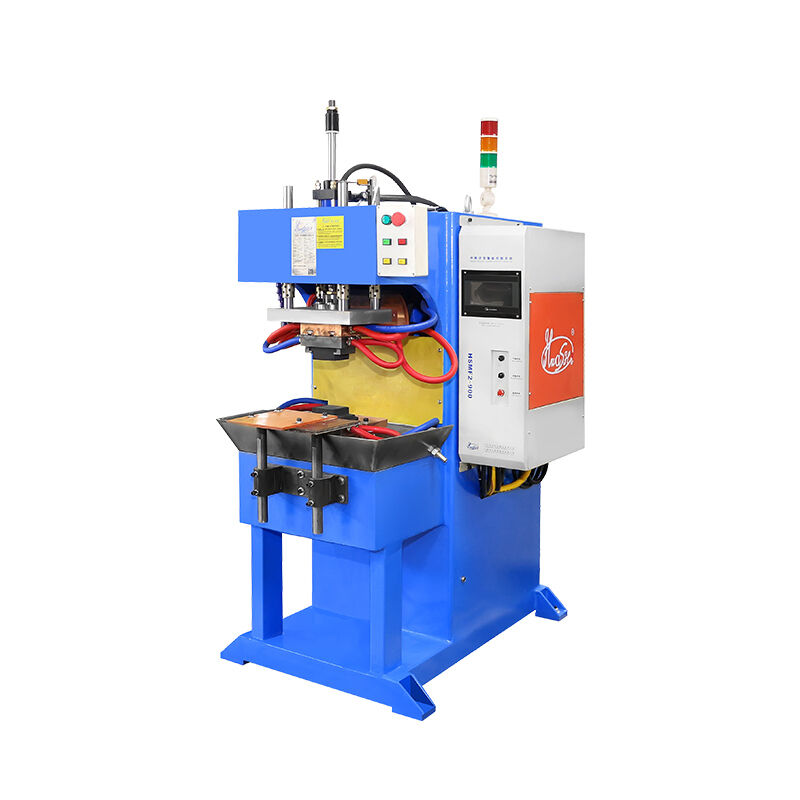

HWASHI WL-MF-250K Vertical Type Medium Frequency Inverter Spot Welding Machine

The HWASHI WL-MF-250K is an advanced medium frequency inverter spot welding machine designed for precision metal sheet welding applications. This vertical type welding system utilizes innovative inverter technology to deliver superior performance and efficiency.

Advanced Technology Overview

This medium frequency inverter spot welder converts three-phase power supply through specialized rectification into 1000Hz AC voltage, which is then transmitted to a medium frequency transformer. The current is subsequently rectified to supply DC welding current, providing significant advantages in energy efficiency and performance.

Premium Construction Features

Thicker copper plates and copper belts ensure stable conductivity during welding operations
Customized electrodes designed for various materials including steel, aluminum, silver, stainless steel, and nickel steel
Enhanced performance reliability through superior material selection

Key Performance Advantages

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9 (compared to 0.4 for power frequency), significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz
Superior welding quality with stable nugget size, minimal spatter, and excellent surface finish
Reduced energy consumption and infrastructure requirements
User-friendly interface with multiple welding parameter storage and real-time monitoring

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 year

Application Examples
