Rumah > Produk > Mesin pengelasan kondensor kulkas >

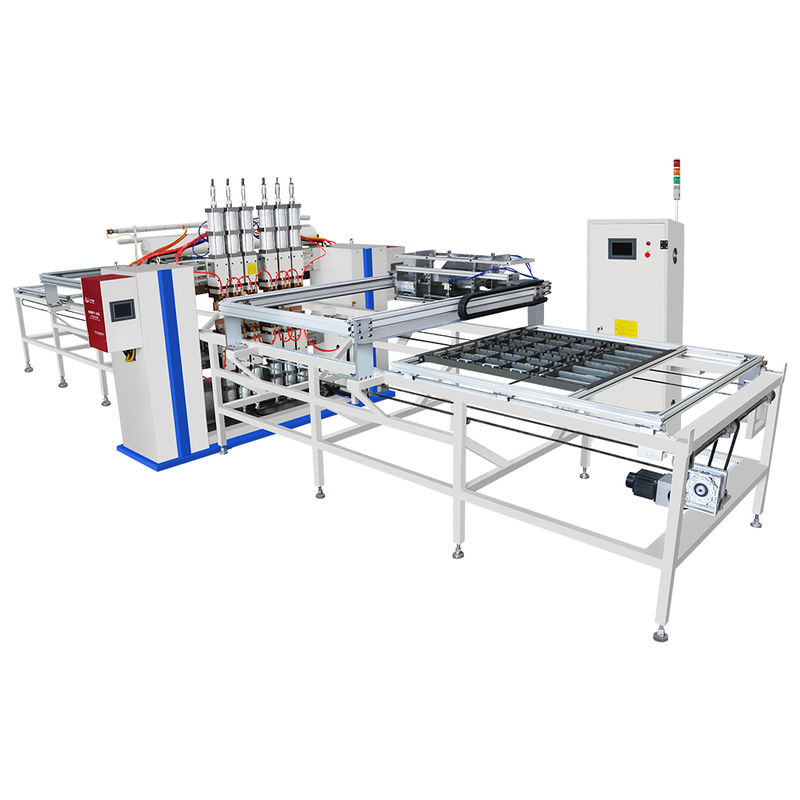

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

automatic condenser wire mesh welder

low carbon steel spot welding machine

refrigerator condenser wire mesh welder

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Nomor model:

WL-SQ-150K*2

Hubungi Kami
Minta Kutipan
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding
Rincian produk
Nama Produk:
Hwashi Otomatis Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel
Jaminan:
12 bulan
Kondisi:
Baru
Metode pendinginan:
Berpendingin udara
Kehidupan Layanan:
8-10 tahun
Tekanan udara yang bekerja:
0.6-0.8MPA
Daya output:
1.12KW
Model:
mesin las
saat ini:
200a
Syarat Pembayaran & Pengiriman
Kuantitas min Order
1 set
Harga
dapat dinegosiasikan
Kemasan rincian
Paket kayu yang layak di laut
Waktu pengiriman
7-30 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran
L/c, t/t
Menyediakan kemampuan
50 set per bulan
Produk terkait
Harga yang bagus Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding on line Video

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding

Dapatkan Harga Terbaik
Harga yang bagus Mlaximize Eficiency and with Our Refrigerator Wire Tube Condenser Production line Machine Welding and Bending Machine on line Video

Mlaximize Eficiency and with Our Refrigerator Wire Tube Condenser Production line Machine Welding and Bending Machine

Dapatkan Harga Terbaik
Harga yang bagus Wire Mesh Welding Machine dilengkapi dengan perangkat pengungkapan otomatis membuatnya dan mudah untuk pekerja Anda on line Video

Wire Mesh Welding Machine dilengkapi dengan perangkat pengungkapan otomatis membuatnya dan mudah untuk pekerja Anda

Dapatkan Harga Terbaik
Harga yang bagus Mesin Lini Produksi Kondensor Tabung Kawat Kulkas, Mesin Las dan Tekuk on line Video

Mesin Lini Produksi Kondensor Tabung Kawat Kulkas, Mesin Las dan Tekuk

Dapatkan Harga Terbaik
Hubungi Kami
+8613380655800
marketing@hwashi.com
Hubungi Sekarang
Deskripsi Produk
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 0

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding​

Refrigerator Wire Tube Condenser Production Line Machine, Welding and Bending Machine is special design production line for condenser. The condenser is made of wires and serpentine bundy tube. The whole line machine includes the following machines:

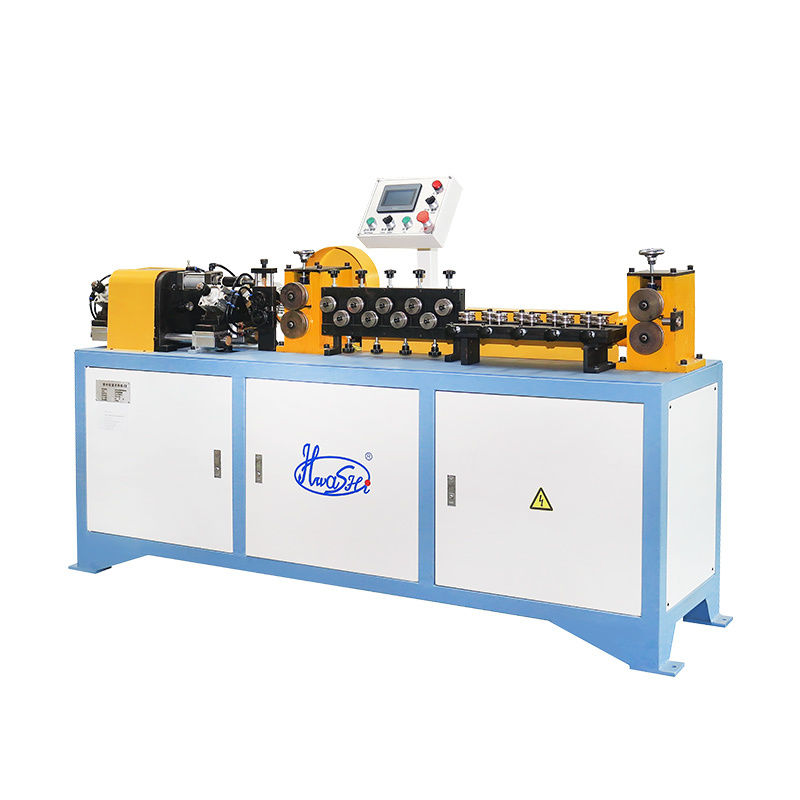

1. High speed wire straightening and cutting machine 2. Tube straightening and cutting machine 3. Tube bending machine 4. Automatic condenser welding machine 5. Other related equipments: tube end expanding/shrinking machine, condenser folding machine, etc.
We can design the complete line according to your product drawings and efficiency requirement. Only you need to send us the product drawings, and output rate requirement, our engineer will come out with the most suitable proposal for you.

Wire Tube Condenser Production Line
Production Process
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 1
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 2

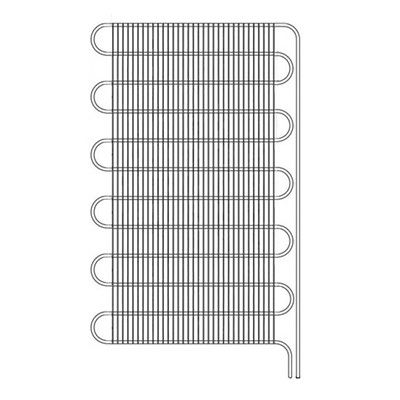

Condenser Sample Information
Wire diameter
1.1-1.5mm
Bundy Tube Diameter
4.76/6.35/8mm
Bundy Tube Radius:
R15/R50/R100
Width range
420-600mm (customized)
Length range
450-1200mm (customized)

Automatic condenser welding machine

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 3




Intelligent welding control system
Automatic welding by inputting coordinate data of welding position, welding current and other data.

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 4




Welding Heads and Fixtures
Processing and design according to the drawings of each condenser product. (customized)

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 5




Magnetic Wire Filling Device
Fast and easy wire loading onto the fixture. We need to separate the material loading into three steps. Load the wires at first layer, then load the serpentine tube, at last load the wires again on the tube.

Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 6





Automatic Double-layer Feeder

When one fixture is under welding process, operator will load the wires and tube onto the other fixture at the same time. When finish welding, the feeder will automatically exchange the fixture. So the efficiency can be increased.


Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 7
Production Line Composition
Other Machines Related to WOT Condender Production Line Composition
We can design the complete full automatic or semi automatic production line machine for refrigerator condenser.
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 8
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 9
Application and samples
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 10

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.
Factory & Certificate
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 11
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 12
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 13
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 14
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 15
Packing & Delivery
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 16
Hwashi Automatic Multi Point Refrigerating Condenser Wire Mesh Spot Welding Machine Low Carbon Steel Wire Mesh Welding 17
